Explanation of Voltage Divider Tools

Voltage Divider Calculator

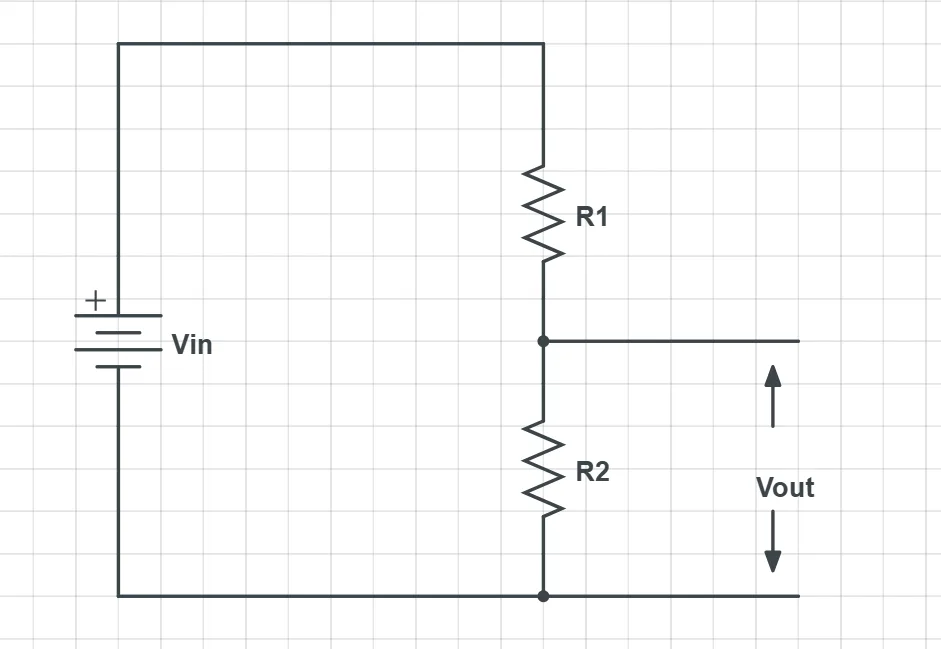

The Voltage Divider Calculator is a tool designed to assist electronics enthusiasts, students, and engineers in quickly determining the output voltage (Vout) of a voltage divider circuit. A voltage divider is one of the most fundamental circuits in electronics, used to divide a larger input voltage (Vin) into a smaller output voltage based on the ratio of two resistors (R1 and R2) connected in series.

Purpose: This calculator is useful when designing circuits where a specific voltage is required for a component. For example, reducing a 12V supply to a 5V level suitable for a microcontroller.

Parameters:

1. Input Voltage (Vin): The voltage supplied to the circuit.
2. Resistor R1 (Ω\Omega): The resistor connected to the input voltage.
3. Resistor R2 (Ω\Omega): The resistor connected to the ground.
4. Output Voltage (Vout): The voltage across R2.

How to Use:

1. Enter the values for Vin, R1, and R2.
2. Click the "Calculate Output Voltage (Vout)" button.
3. The output voltage will be displayed immediately.

---

R1 Calculator for Desired Vout

This tool calculates the required resistance value of R1 to achieve a specific output voltage (Vout) in a voltage divider circuit. It is particularly helpful when you know the input voltage, desired output voltage, and the value of R2.

Purpose: To aid in the design of circuits requiring precise voltage levels for powering components or devices.

Parameters:

1. Input Voltage (Vin): The voltage supplied to the circuit.
2. Desired Output Voltage (Vout): The voltage you want to achieve across R2.
3. Resistor R1 (Ω\Omega): The known resistor value in the circuit.
4. Calculated Resistor R2 (Ω\Omega): The value of R2 needed to achieve the desired output voltage.

How to Use:

1. Enter the values for Vin, desired Vout, and R1.
2. Click the "Calculate Resistor R2" button.
3. The calculated R2 value will be displayed.

These tools simplify the design process for anyone working on voltage regulation and provide accurate results for various use cases. If you have any questions or need further clarification, feel free to reach out!
